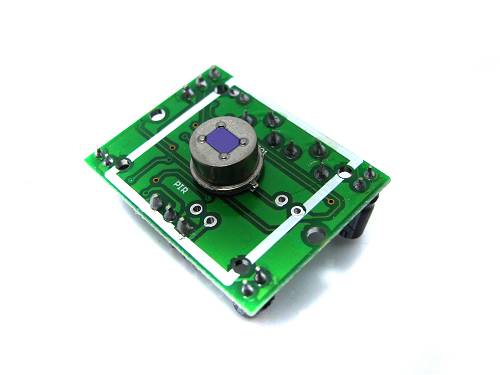

PIR Motion Sensor Module GH-718
Highly integrated module popularly used for entry detection, it complies with microcontroller or DC loads.
Usage :
1、Input Voltage : DC 4.5-20V
2、Static current : 50uA
3、Output signal : 0,3V (Output high when motion detected)
4、Sentry Angle : 110 degree
5、Sentry Distance : max 7 m

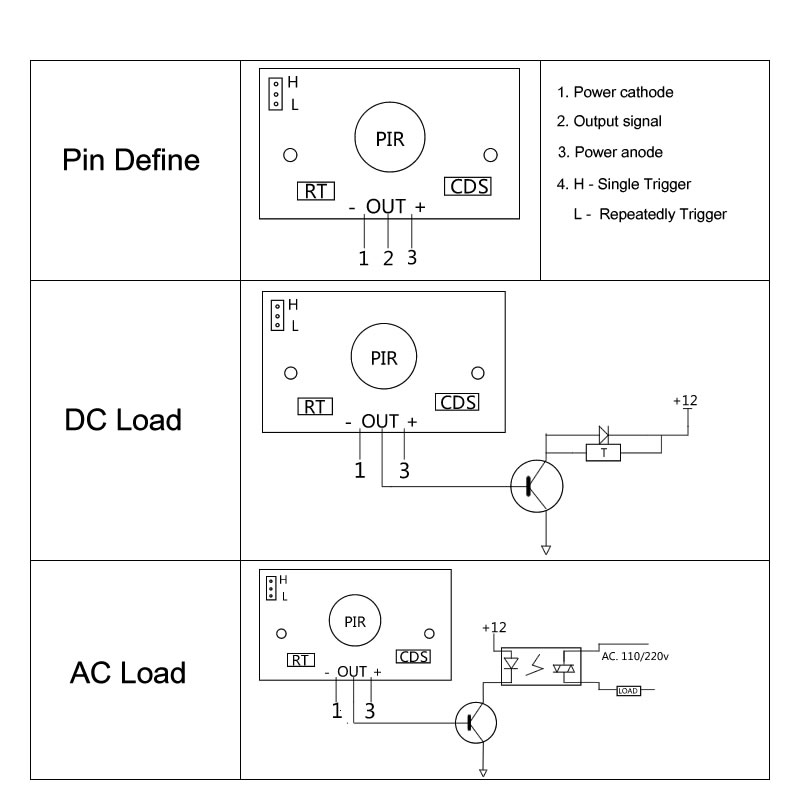

6、Shunt for setting overide trigger : H - Yes, L - No
7、Size : 38mm * 28mm (32mm * 24mm)
Advantage :
1、Simple,easy to adopt any circuit system.
2、There are two adjustable potentiometer on the module, you can use them to change the trigger sensitivity and the duration of the trigger signal.
Usage :
1、Input Voltage : DC 4.5-20V
2、Static current : 50uA
3、Output signal : 0,3V (Output high when motion detected)
4、Sentry Angle : 110 degree
5、Sentry Distance : max 7 m
6、Shunt for setting overide trigger : H - Yes, L - No
7、Size : 38mm * 28mm (32mm * 24mm)
Advantage :
1、Simple,easy to adopt any circuit system.
2、There are two adjustable potentiometer on the module, you can use them to change the trigger sensitivity and the duration of the trigger signal.
